Mk6N GENIUS Energy Meter

Key Features

The EMk6N GENIUS is a high-accuracy multifunction energy meter designed by EDMI for LV, MV, and HV applications. It supports 2-element and 3-element configurations, advanced power quality analysis, and flexible communication options, making it ideal for utility and industrial metering.

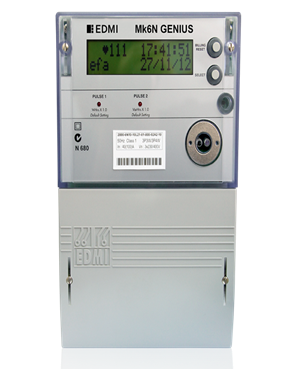

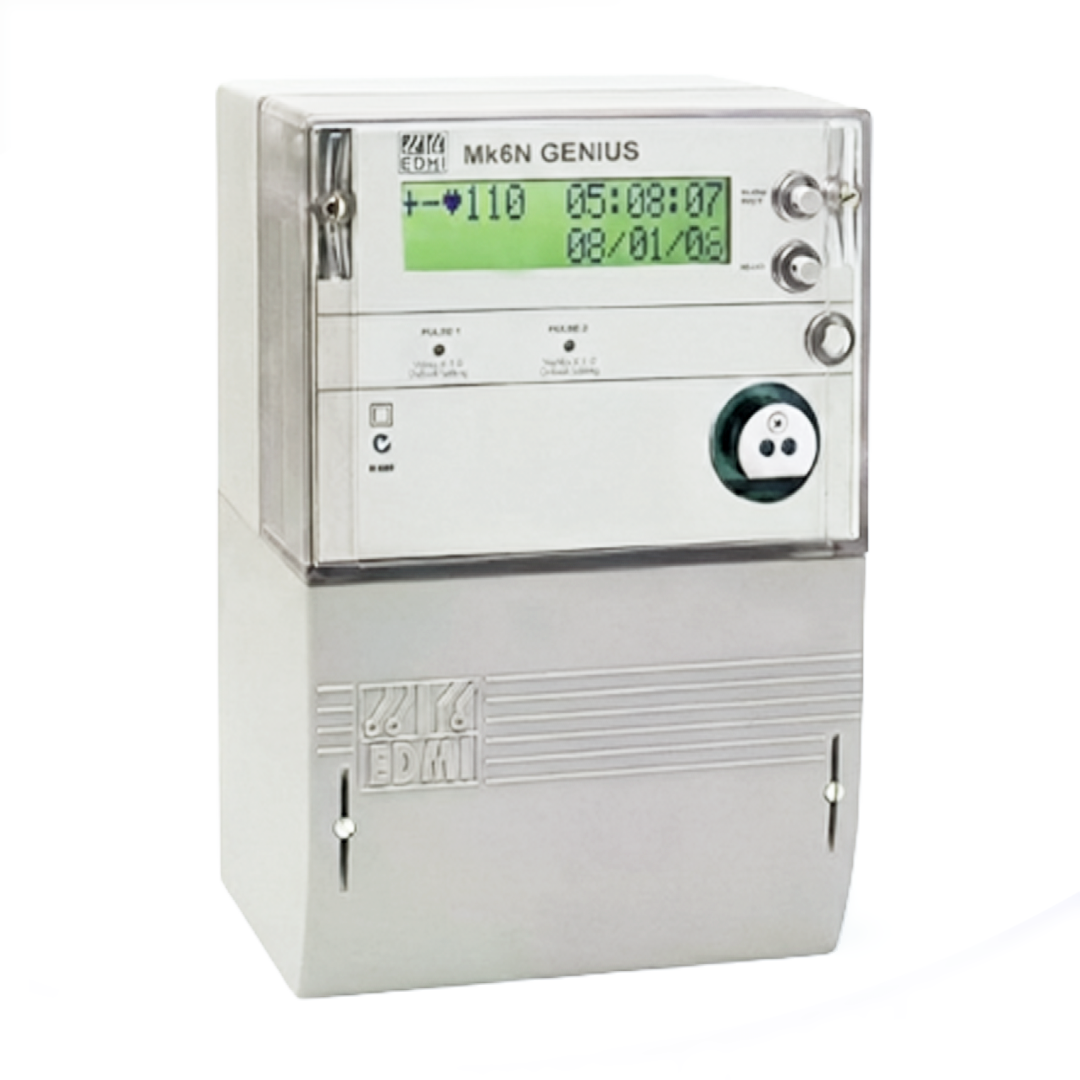

product image edmi mk6n genius energy meter
edmi mk6n genius energy meter

Key Features

  • Accuracy Classes: 0.2S, 0.5S, Class 1
  • Supports 2 Element / 3 Element (no hardware modification)
  • Suitable for LV, MV & HV installations
  • Measures all electrical parameters (V, I, kW, kVA, kVAR, PF, Hz)
  • Advanced Tariff & Load Survey functions
  • Power Quality & Harmonic Analysis
  • DLMS / OBIS compatible
  • High data security & user access levels
  • Field upgradeable firmware

Electrical Specifications

  • Voltage Range: 45 – 290V (Phase to Neutral)
  • Current Inputs: 1(1.2)A  /  5(6)A  /  1(6)A  /  5(10)A  /  5(20)A (CT operated)
  • Measurement Modes: Single Phase (3 circuits) 3 Phase 3 Wire (2 Element) 3 Phase 4 Wire (3 Element)

Applications (Use Cases)

  • Utility Billing
  • Transmission & Distribution
  • HV / MV Substations
  • Smart Grid & AMI Projects

Measurements & Accuracy

  • Active Energy (kWh)
  • Reactive Energy (kVARh)
  • Apparent Energy (kVAh)
  • Active / Reactive / Apparent Power
  • Maximum Demand (Block & Rolling)
  • Voltage & Current RMS
  • Power Factor Frequency
  • Harmonics & Waveform Capture (Optional)

Communication & Integration

  • Optical Port (IEC 62056-21)
  • DLMS / IDIS / Modbus RTU
  • Optional RF Communication Module
  • Remote configuration & firmware upgrade
  • Compatible with EDMI HES & AMI platforms

Communication Interfaces

  • Optical Port (ANSI / FLAG)
  • RS-232 RS-485 GSM / Modem support
  • SCADA Interface (Optional)
  • TCP/IP (via external devices)
  • MV90 compatible EziPort (data streaming)
