ZERA Meter Testing Systems

Over 100 Years of Experience

ZERA develops, manufactures, and distributes devices and systems for the generation, measurement, testing, and calibration of electrical quantities. Our focus is on meter and instrument transformer testing technology, as well as precision laboratory technology.

Egypt’s Exclusive Partner for ZERA

Since 2000, Infinity Egypt has served as the sole authorized partner within the Egyptian market, boasting over a quarter-century of local expertise. As the sole strategic ally for ZERA in Egypt, we bring world-class precision to the nation’s electrical testing and calibration landscape. We ensure that Egyptian utilities and manufacturers have direct access to the gold standard in metrology, driving excellence in quality assurance and technical compliance.

Infinity Egypt's ZERA Testing and Calibration Services

Advanced Meter Testing & Metrology

Infinity Egypt is the exclusive partner of ZERA in Egypt, providing advanced electricity meter test systems and reference equipment. Our core expertise lies in verifying the performance and reliability of both AC and DC energy meters. Utilizing ZERA’s world-class stationary and portable test benches, we provide: Accuracy Verification: High-precision assessment across classes up to 0.005. We determine error limits under varied load conditions to guarantee precise billing.

Smart Meter & Communication Protocol Testing

Infinity Egypt is the exclusive partner of ZERA in Egypt, supporting the modernization of power grids, we offer specialized testing for smart metering infrastructure: Protocol Interoperability: Comprehensive byte-by-byte verification of communication protocols, including DLMS/COSEM, SML, and TLS, ensuring secure data transmission. Functional Verification: Testing of internal disconnect breakers, load-shedding switches, and magnetic/motion sensor integrity. Load Profile Auditing: Verifying the meter’s capacity to accurately record and store time-stamped consumption data.

E-Mobility Infrastructure Testing

ZERA is a pioneer in the metrological validation of Electric Vehicle Supply Equipment (EVSE). As an exclusive partner of ZERA in Egypt, Infinity Egypt offers services for AC and DC charging stations include: Metrological Accuracy: Direct measurement of energy transfer to ensure charging stations comply with billing standards. Safety & Protective Testing: Verification of RCD (Residual Current Device) functionality, surge protection, and grounding continuity. Protocol Conformance: Testing the communication bridge between the vehicle and the charging station according to ISO 15118 standards.

METER TEST SYSTEMS

STATIONARY

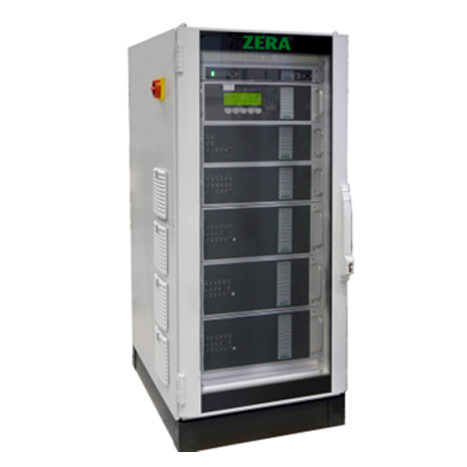

Source System

MTS320 - Class 0.02 up to 0.005

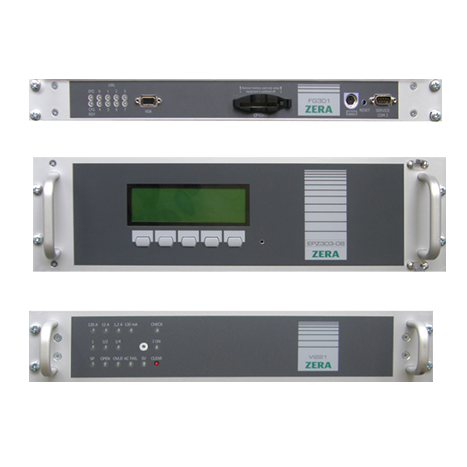

COMPONENTS SOURCE

Reference Meter - Current & Voltage Amplifier

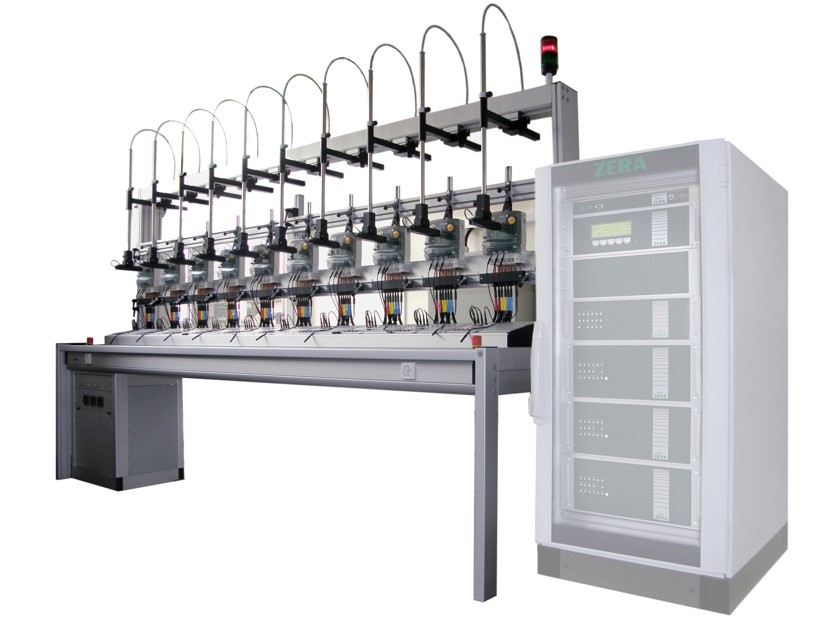

Test Benches

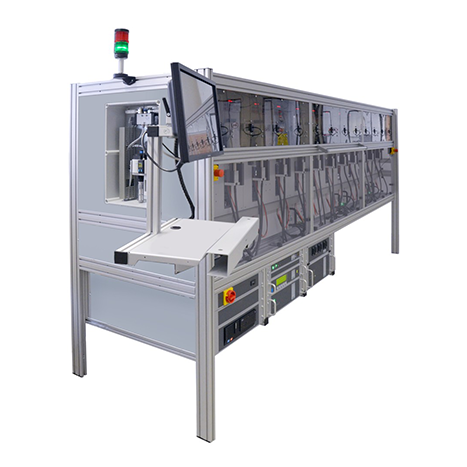

Special Systems

PORTABLE

Reference Meter Class 0.02 (0.05)

zera portable reference meter meter testing mt320s2 2

Reference Meter Class 0.1

Test case for charging stations

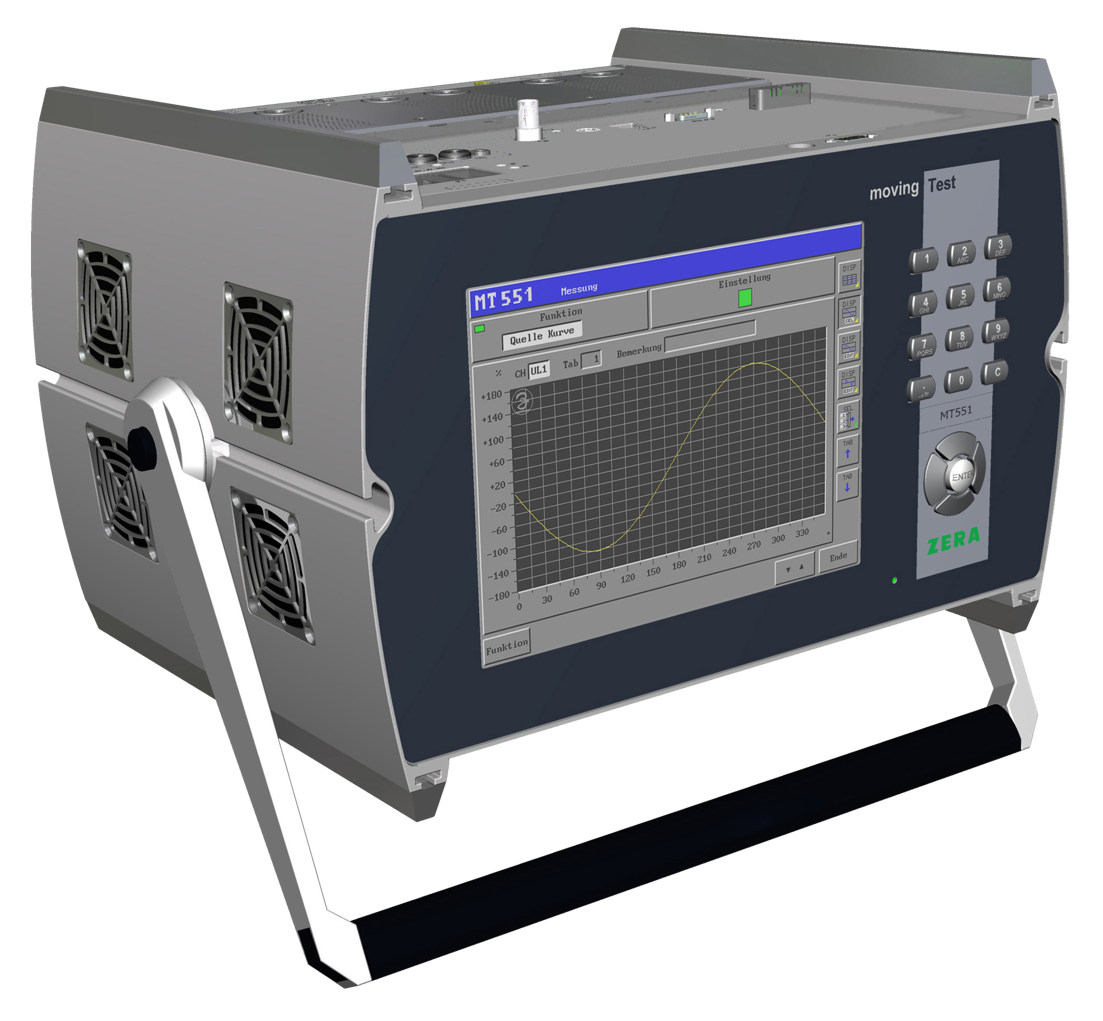

Current and Voltage Source

Instrument Transformer Test Systems

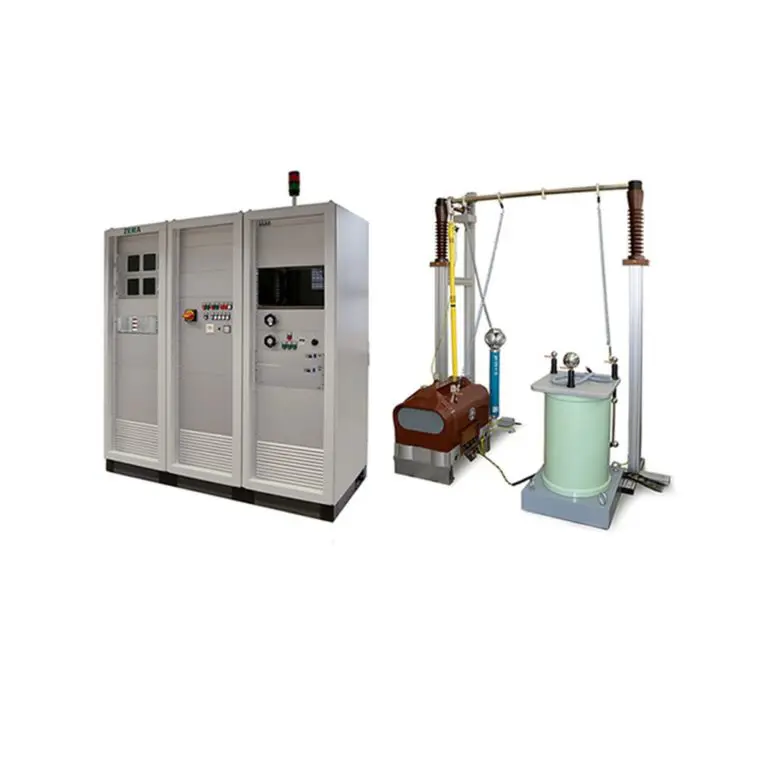

zera komplettsystem ct vt testing messwandlerprueftechnik itts 16kva 768x768

ITTS CT and VT Test System

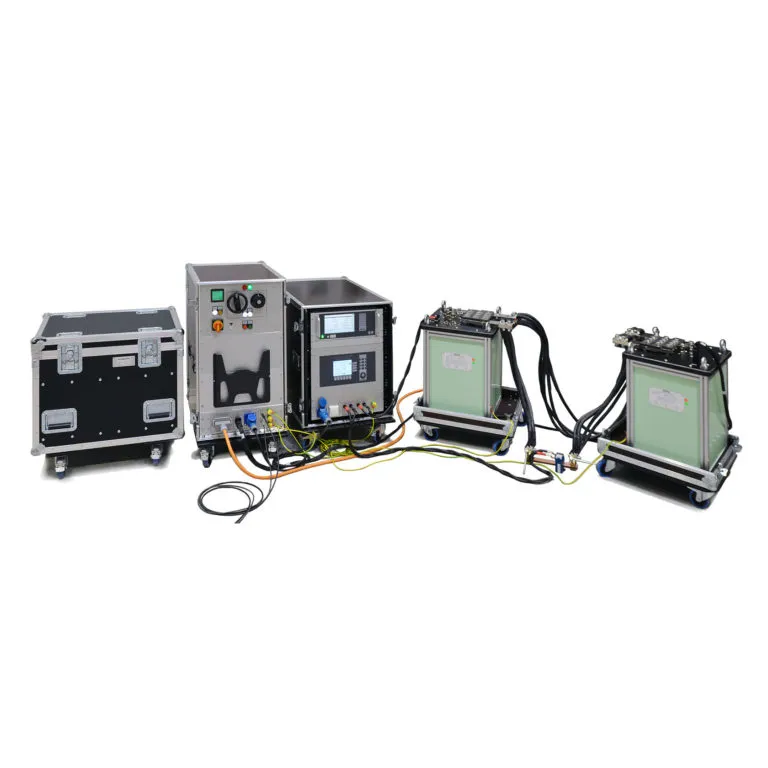

mobile and transportable ct testing system

Mobile CT testing system

measuring bridge

Burden

Browse INFINITY EGYPT's ZERA Products

MTS 320 Meter Test System (3-phase)

Meter Test System (MTS) is a fully electronic, automatic calibration and testing solution for electricity meters, Developed by ZERA.

mts140 (single phase ) stationary energy meter test system

MTS 140 Meter Test System (1-phase)

The Single Phase Energy Meter Test System (MTS) is an advanced system used for testing and calibrating single-phase electricity meters.

MT320-s2 Portable test meter

The MT320s2 is a lightweight and compact test meter for on-site verification and calibration of single- and three-phase meters.

MT320 Portable test meter

The MT 320 is a portable reference meter based on newest technology in power and energy measurement.

MT3000 Portable test meter

The MT3000 is a modular test meter. It is suitable for on-site testing and calibration of single- and three-phase meters.

emob200 e mobility on site testing of ac and dc charging stations

EMOB200 E-MOBILITY Testing System

E-MOBILITY - On-site testing of AC and DC charging stations. The three-phase test case EMOB200-00 is suitable for current measurements up to 32 A (AC) and 200 A (DC). The device is equipped with connections for Type 2 and CCS 2 plugs.

NEXT-GENERATION SMART METER TESTING SOLUTIONS

Adv-Multi-Channel Communication Testing

OPTICAL PORT

Enables simultaneous communication with IEC62056 compliant meters via dedicated optical heads, ensuring precise data transmission and software reporting.

GPRS/ GSM

Seamlessly integrates with gateways, clouds, or servers to capture wireless responses, enabling direct data comparisons against optical readouts.

HES API

Facilitates end-to-end simultaneous testing, supporting advanced alerts generation and Over-The-Air (OTA) operations via test server APls.

Core Functional Validation

DATA & PROFILES

Thorough validation of object lists (e.g., Public Client, MR, US) and precise reads of instantaneous parameters including Voltage, Power Factor, and frequency. Automatically extracts critical billing profile parameters.

LOAD & DEVICE MANAGEMENT

Conducts remote connect/disconnect verification for prepaid meters by operating and validating load switches. Automatically extracts nameplate details and verifies or alters net metering modes.

Metrological Efficiency & Burden Measurement

IDLE MODE

Measures baseline power consumption when the primary communication module is completely inactive.

ACTIVE TRANSMISSION

Evaluates the electrical burden placed on the system during active data bursts per communication module.

IHD MODULE ACTIVE

Calculates the specific load requirements when the meter is actively servicing an auxiliary In-Home Display (IHD).

Tamber Simulation & Stress Resilience

ELECTRICAL TAMPERS

Simulates critical events like missing, reversed, or unbalanced voltage/current, verifying exact responses across both Optical and GPRS ports.

HARMONIC STRESS

Subjects meters to extreme distortion, including 10% 3rd/5th harmonics in voltage/current, and 40% 5th in current.

VOLTAGE EXTREMES

Verifies operational stability when pushed to 120% and 60% of standard reference voltage (Vref).

FREQUENCY & POWER

Ensures data integrity through +/-10% frequency variations and ultra-low power factors (0.1 PF).

Automation Essential Functionalities

FULL AUTOMATION

All communication, tamper events, and stress sequences are executed automatically across all mounted meters simultaneously.

TIME & DISPLAY CHECKS

Continuously monitors Real-Time Clock (RTC) drift and compares physical display values against system data.

SECURITY PROTOCOLS

Validates device security by forcing LLS password updates and confirming subsequent access.

CONNECTIVITY ALERTS

Real-time validation of critical First Breath (power on) and Last Gasp (power off) distress signals.

ZERA TESTING SYSTEMS NATIONWIDE DEPLOYMENT

EGYPT’S leading provider of Meter Testing & Calibration Systems

95%

MARKET SHARE

Infinity Egypt has successfully deployed ZERA advanced calibration and testing solutions across both the regional distribution utilities and the high-voltage national transmission grid, achieving complete geographic coverage across every Egyptian governorates: Cairo, Delta, Alexandria, Canal, Middle Egypt and Upper Egypt.

0% Return-to-Factory Rate

Spearheaded by our elite engineering team of highly qualified professionals.

Trusted by Egypt’s Energy Leaders

Our elite range of precision metering and calibration systems is the industry standard. We are the established, trusted partner for all national electricity distribution companies, the transmission sector, leading panel builders, and major industrial zones across the country.
