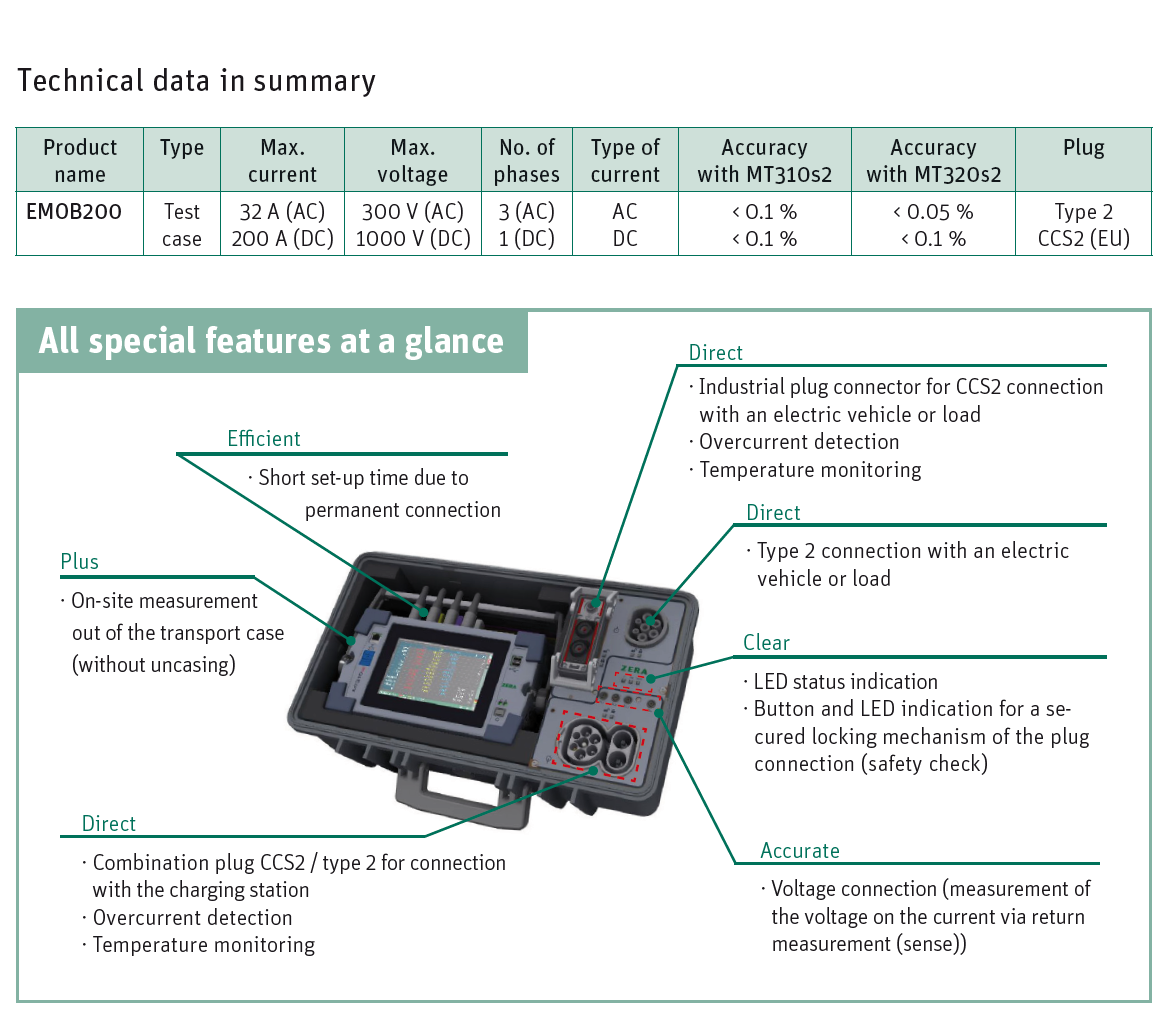

Key Features
- Phases 1, 3
- Voltage measurement max 1000V (DC), 300V (AC)
- Current measurement max. 200 A (DC), 32 A (AC)
- Accuracy class 0.1
- CAT II
- Optimal extension unit for the portable reference meter MT3x0s2

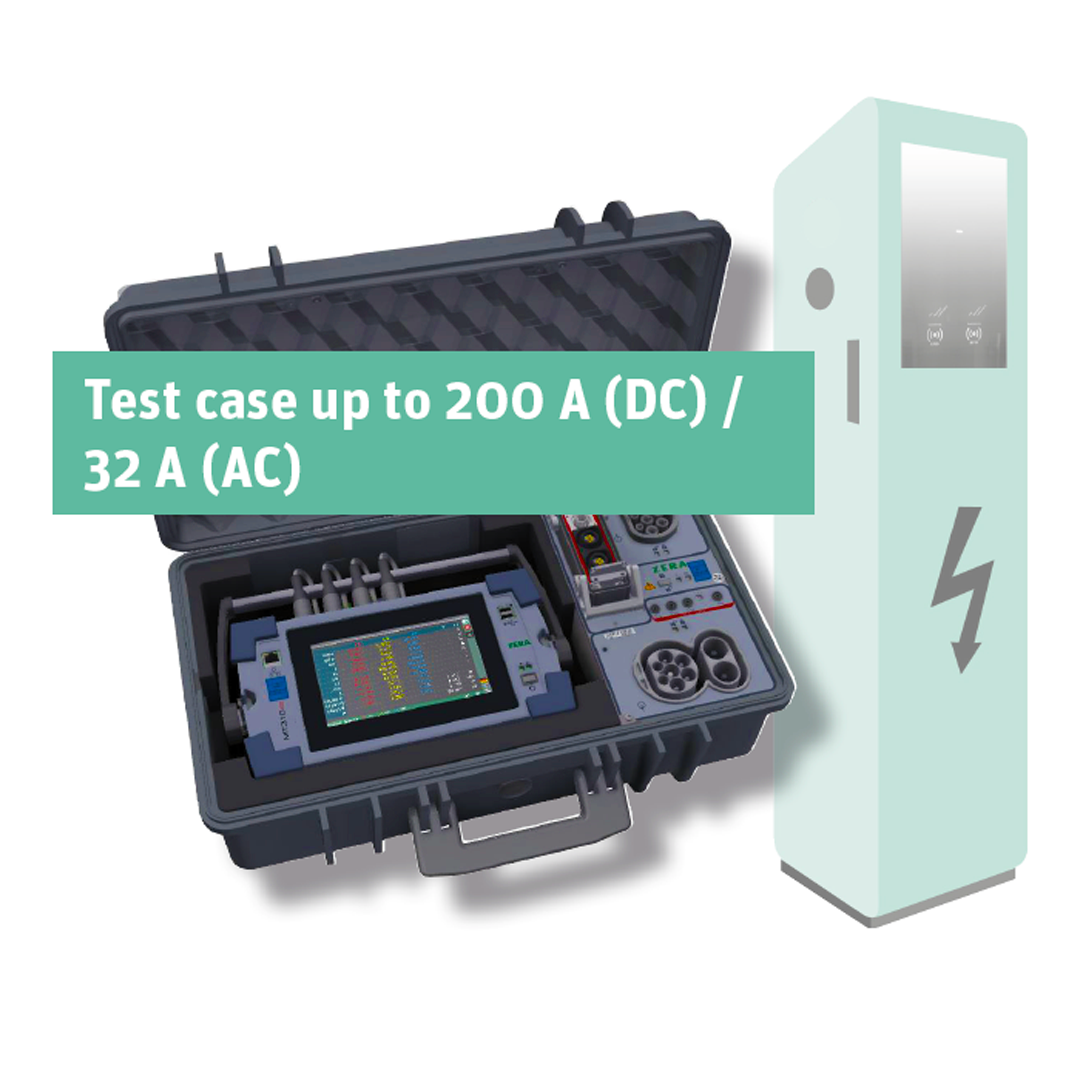

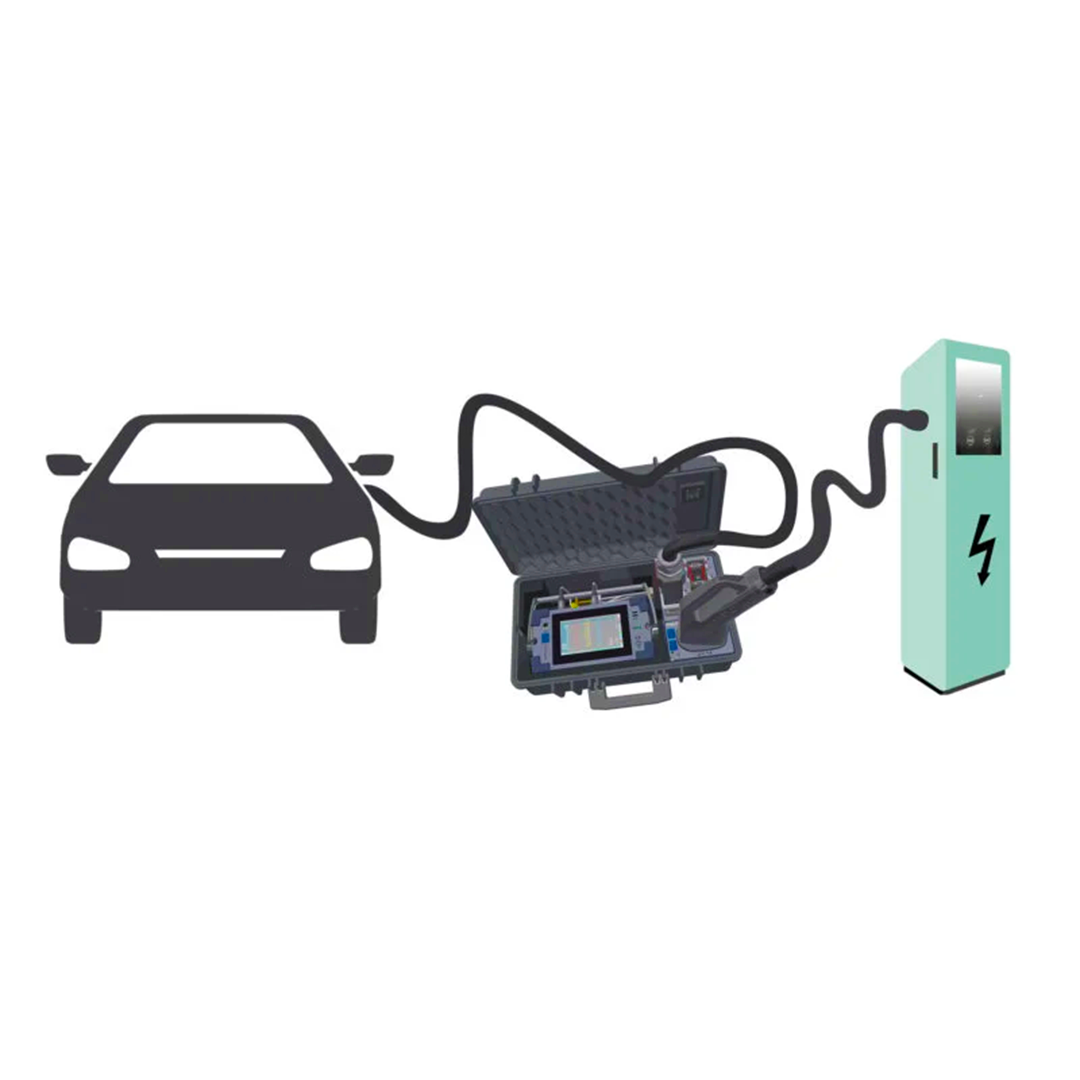

- Direct connection to charging stations for electric vehicles
- Direct measurement up to 200 A (DC)
- Direct measurement up to 32 A (AC)
- Energy measurement during charging.

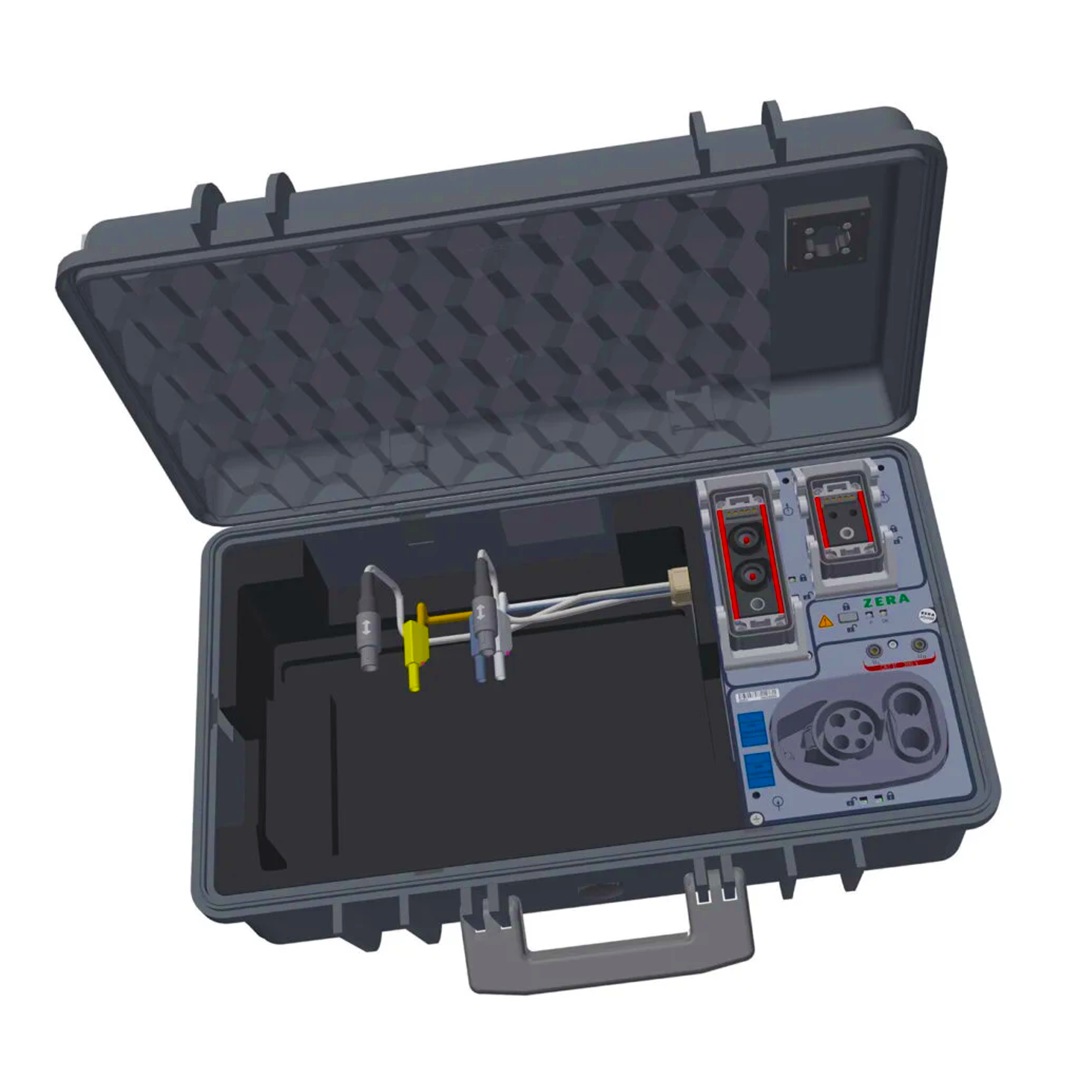

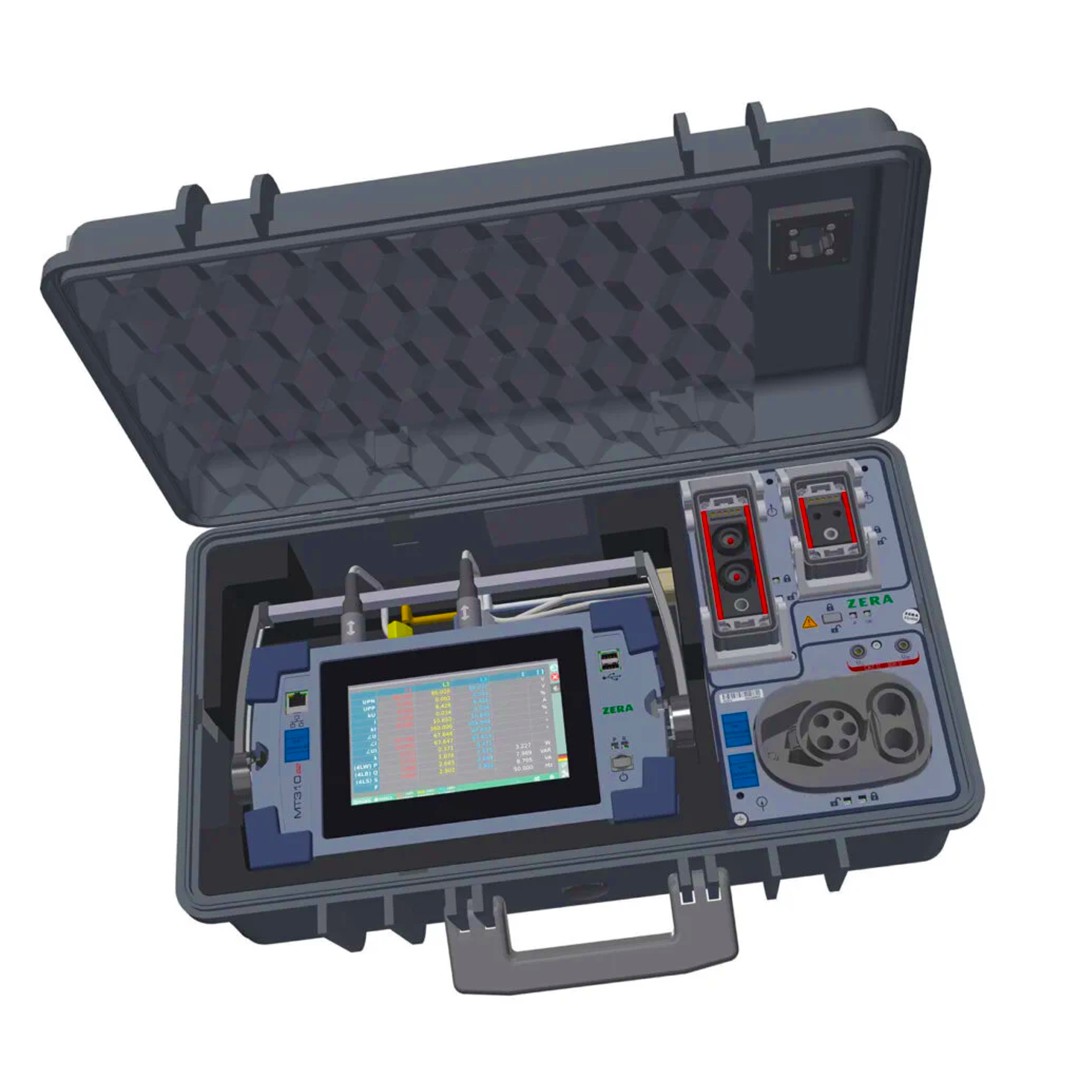

- The test case has the following connection sockets:
- Type 2 (for charging station)
- Type CCS2 (for charging station)
- Socket for Type 2 connector (for the electric car AC)
- Socket for plug connector (for the electric car DC)
Features
- Automatic control of the EMOB test case via WLAN
- Correct contact
- Charging cable detection
- Security check
- Overcurrent detection
- Extensive accessories for on-site measurement in a separate case
- Charging cable with additional measuring leads (Sense)
- Convenient control through guided test sequence via WinSAM and tablet
- Electromechanical locking
- Independent of the mains supply through battery operation of the connected test meter (MT3x0s2)
- Short setup times due to permanent connection of s2 device and EMOBxxx test case
- Type 2 plug (EU)

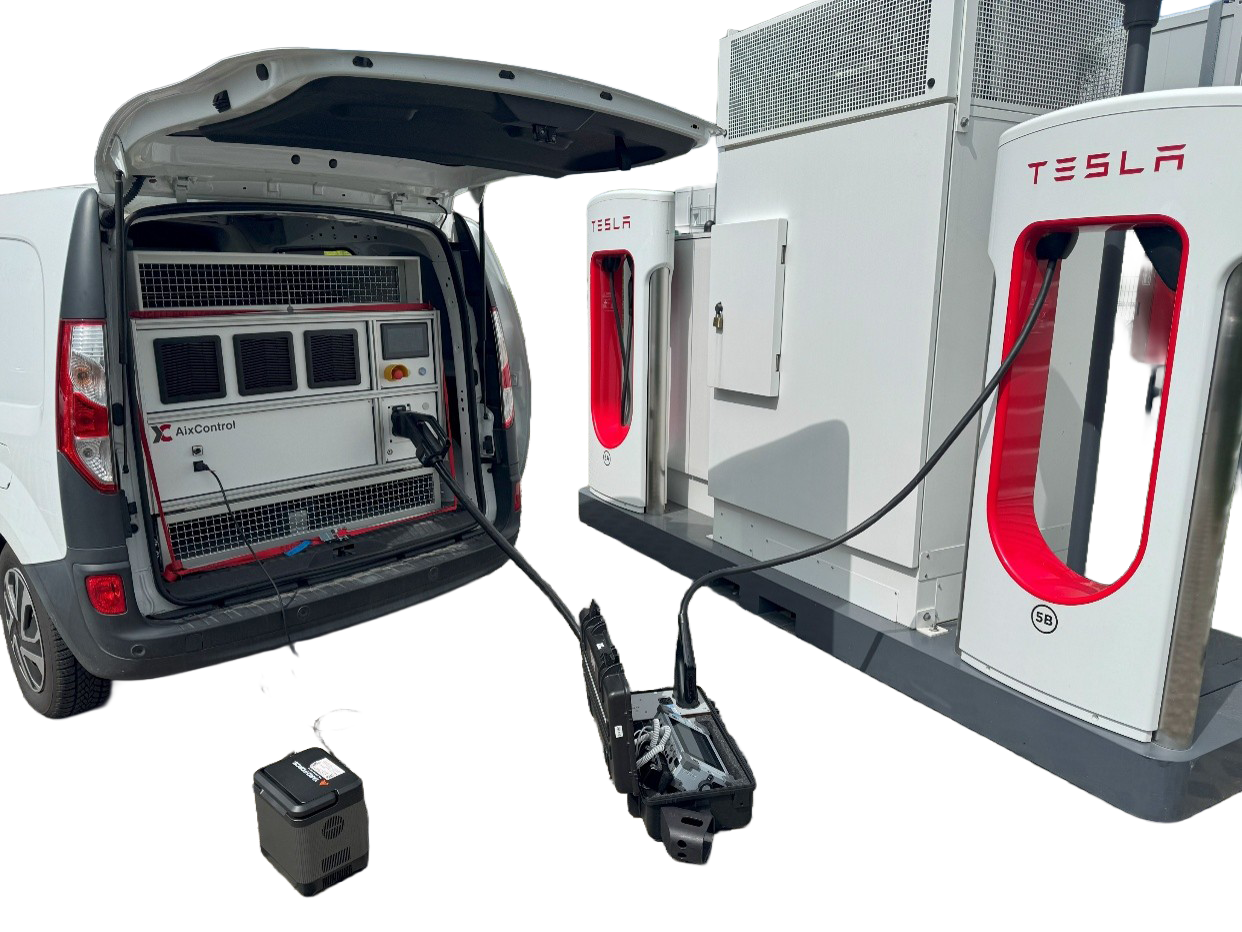

- Suitable for high-current/fast charging stations
- Temperature monitoring of the high-current contacts
Easy handling
- Direct connection via special charging cables
- Permanent connection of s2 device* and test case
- A comprehensive range of accessories for onsite testing in a separate case
Applications (Use Cases)

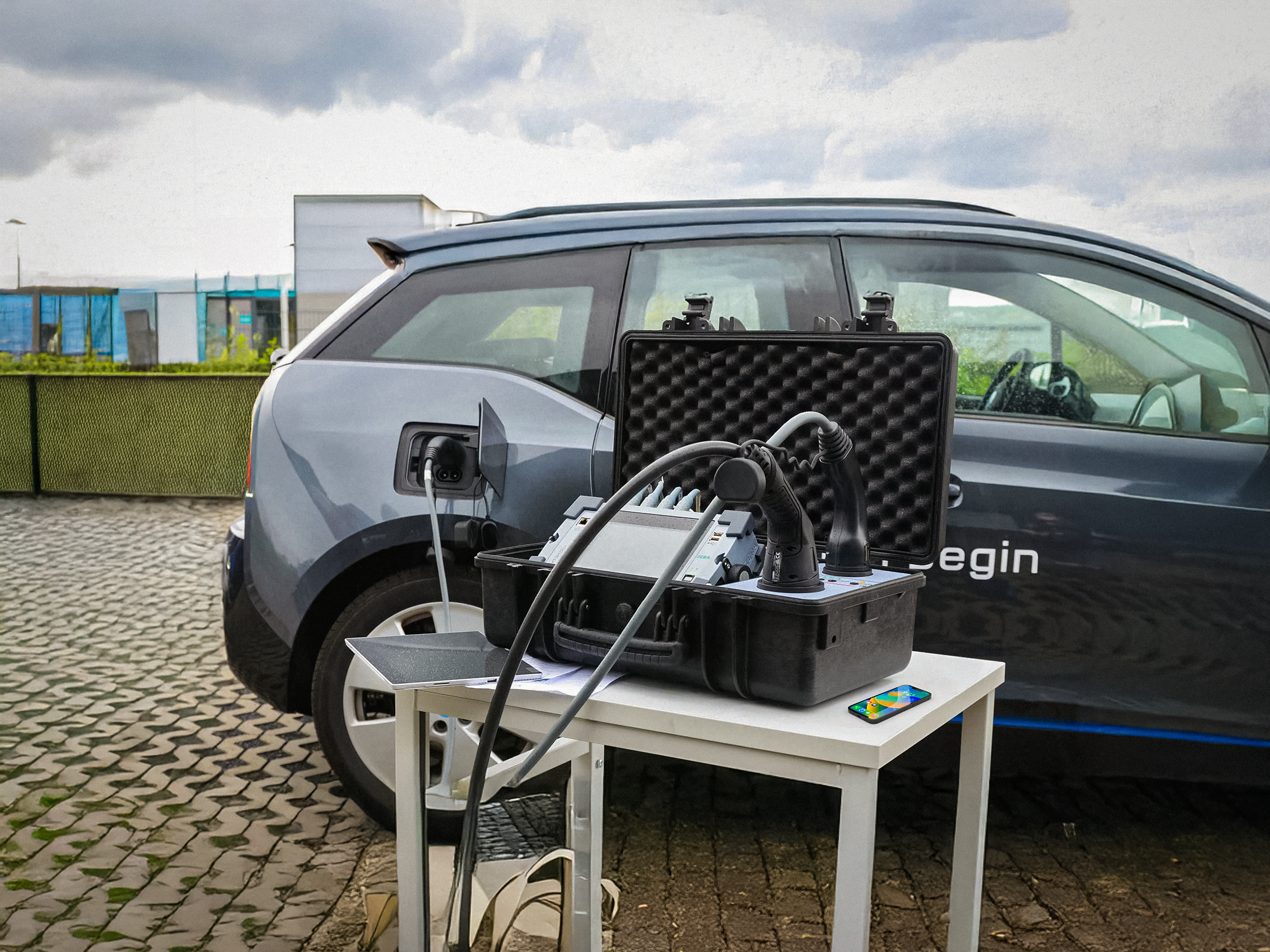

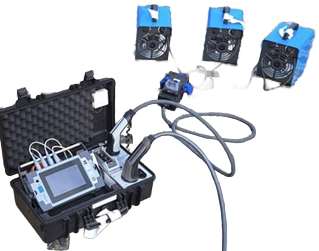

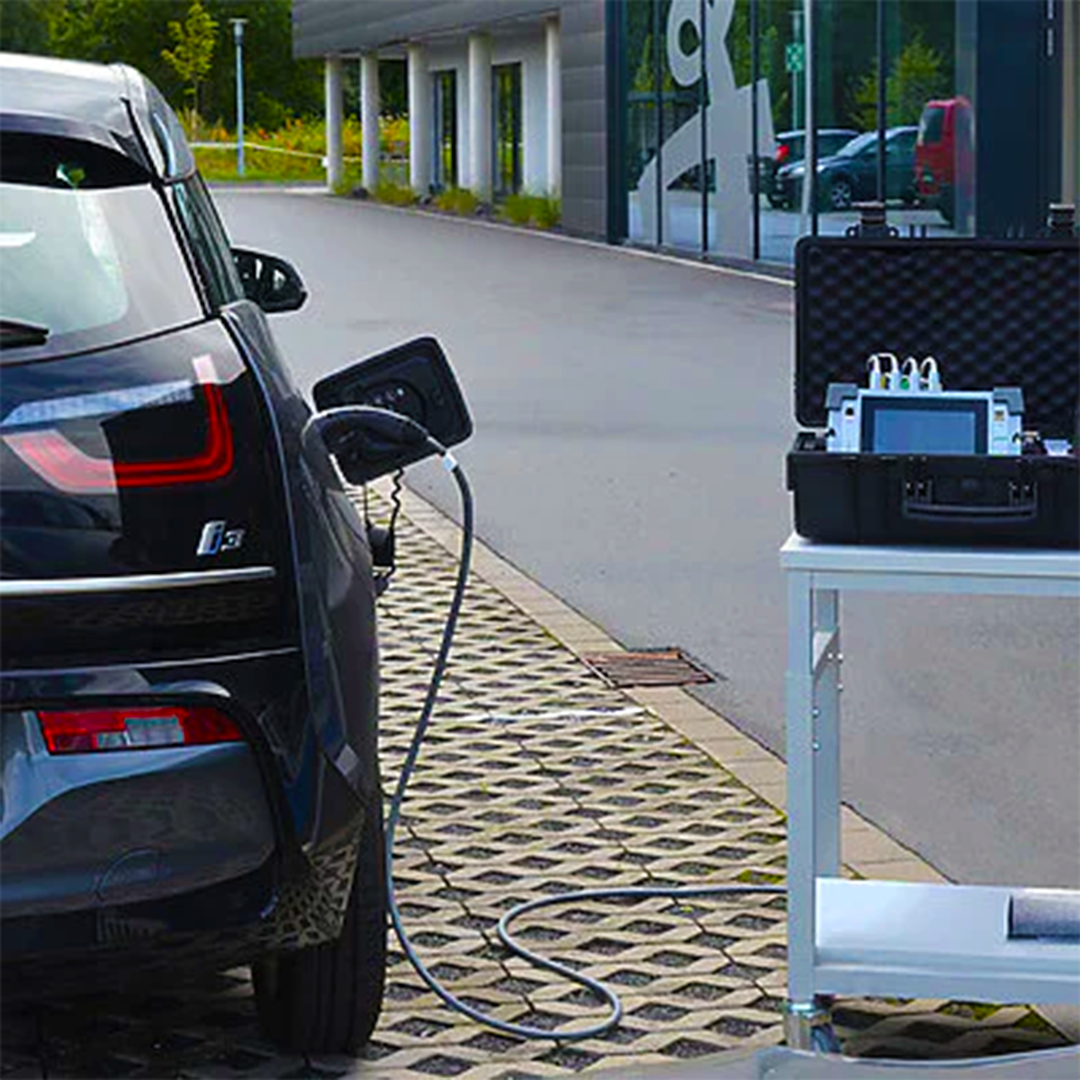

On-site measurements (without mains supply) of charging stations for electric vehicles
High safety aspects
- Connections according to IEC 62196
- Battery pack1 for mains supply of the reference meter on-site
- Safety check
- Charging cable detection
- Electromechanical locking mechanism
- Temperature monitoring of the high-current contacts
- Overcurrent detection
