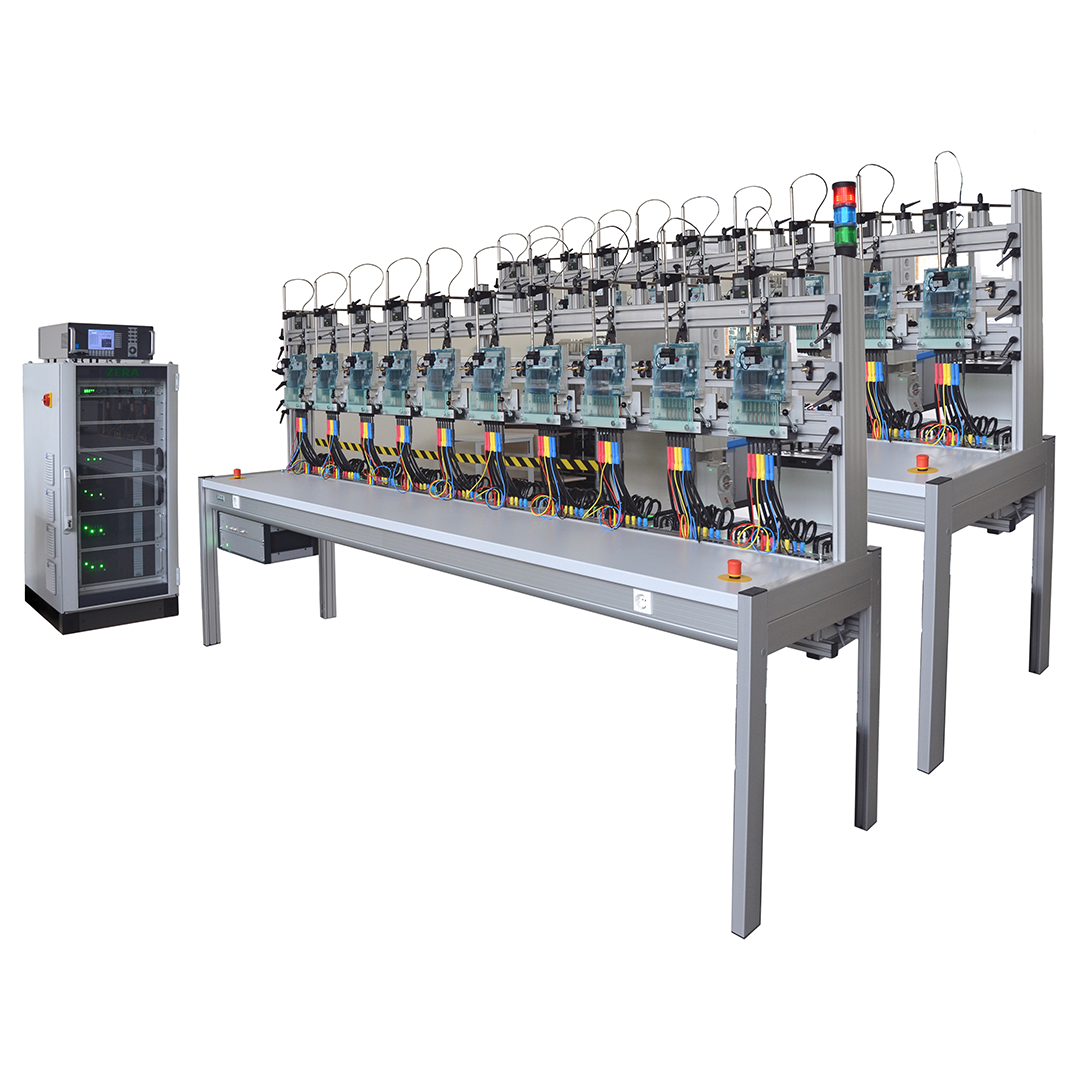

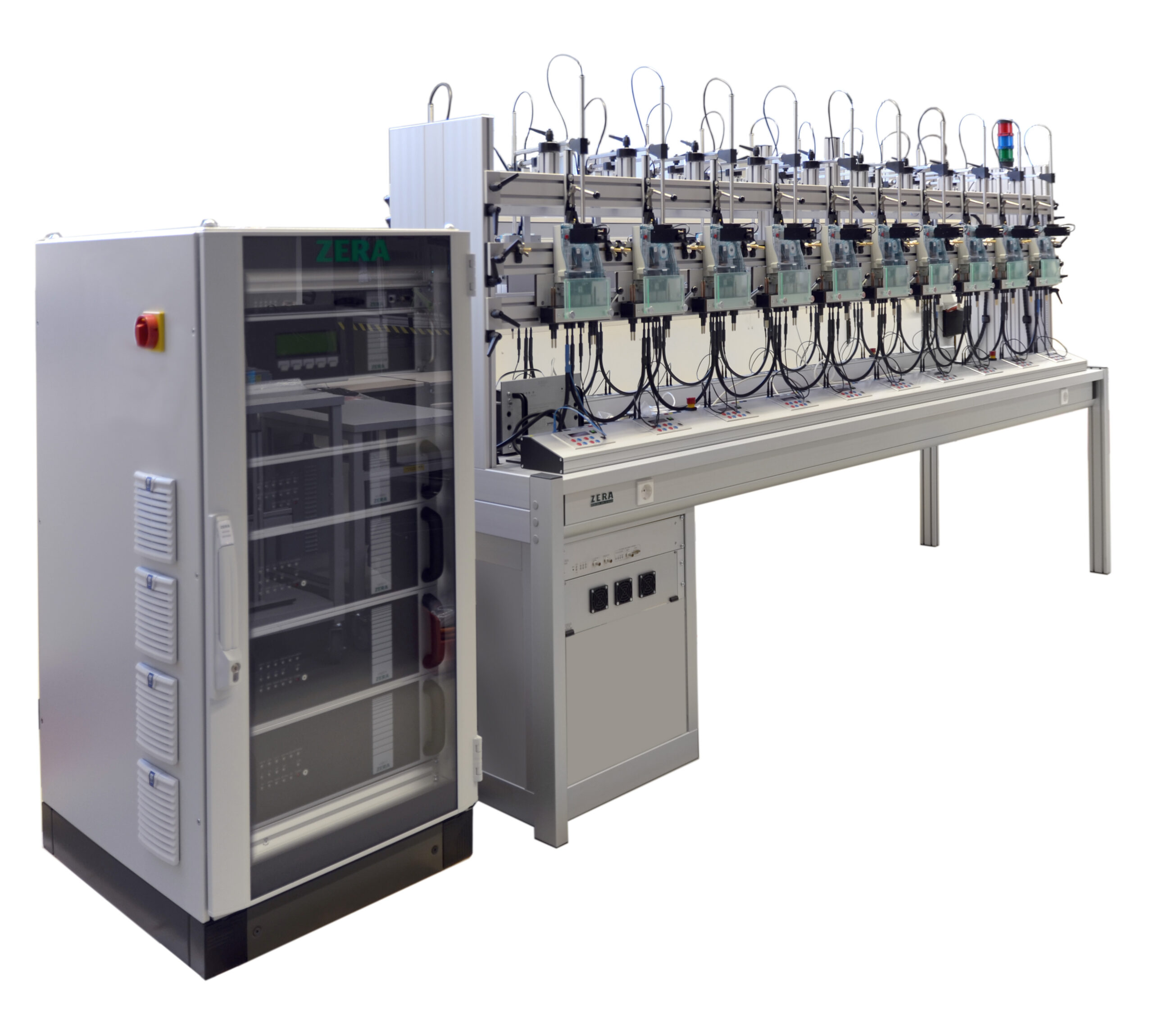

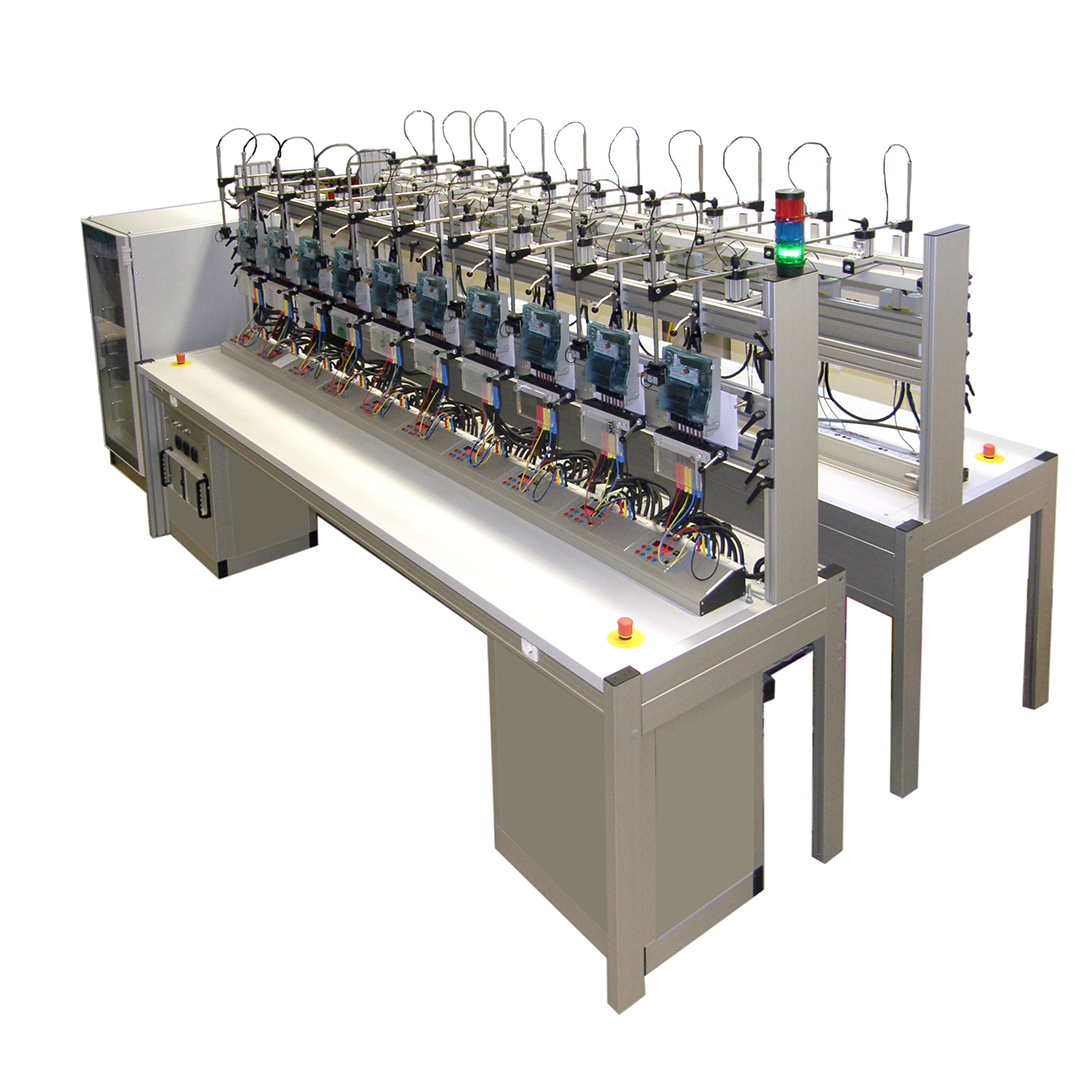

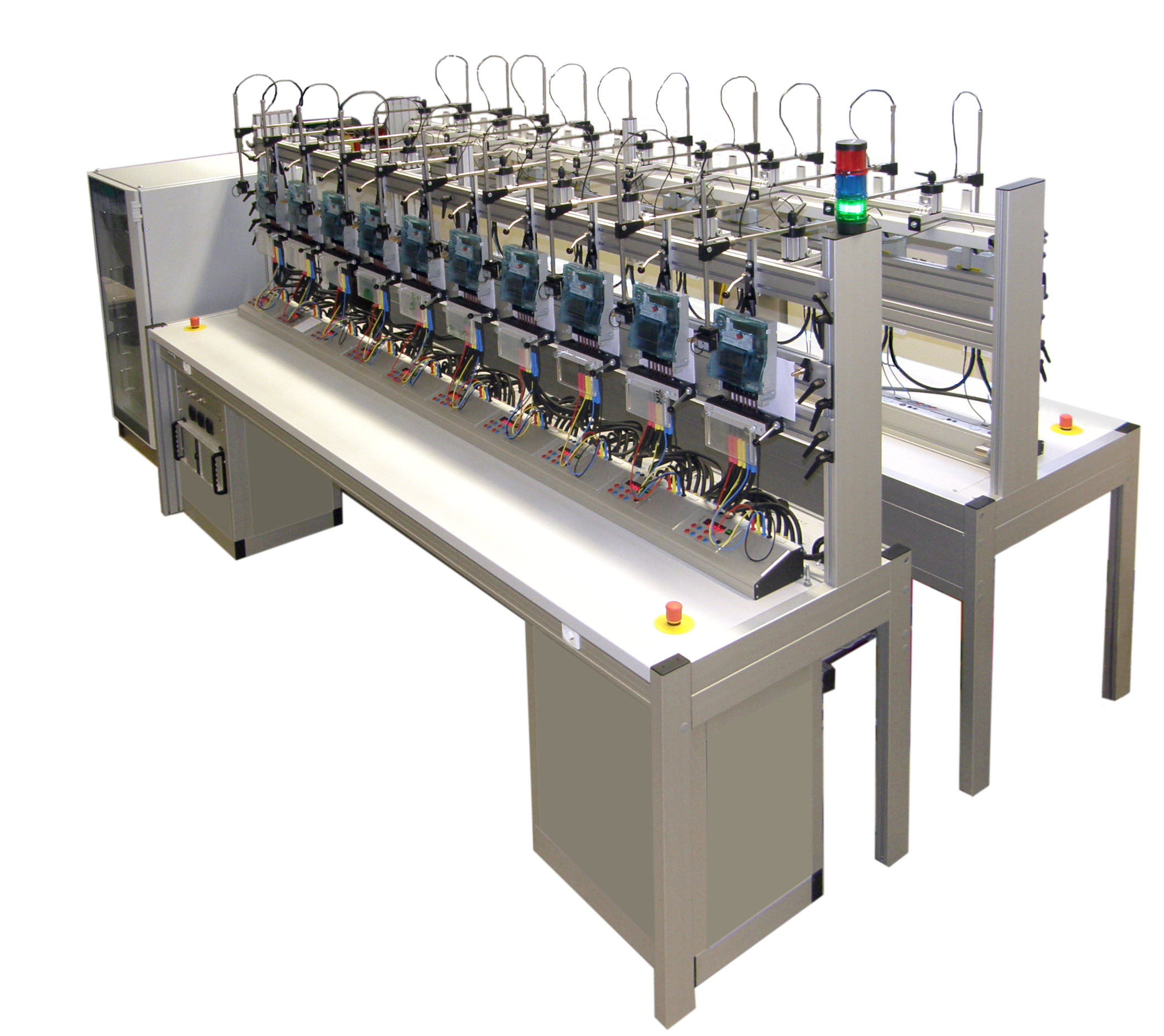

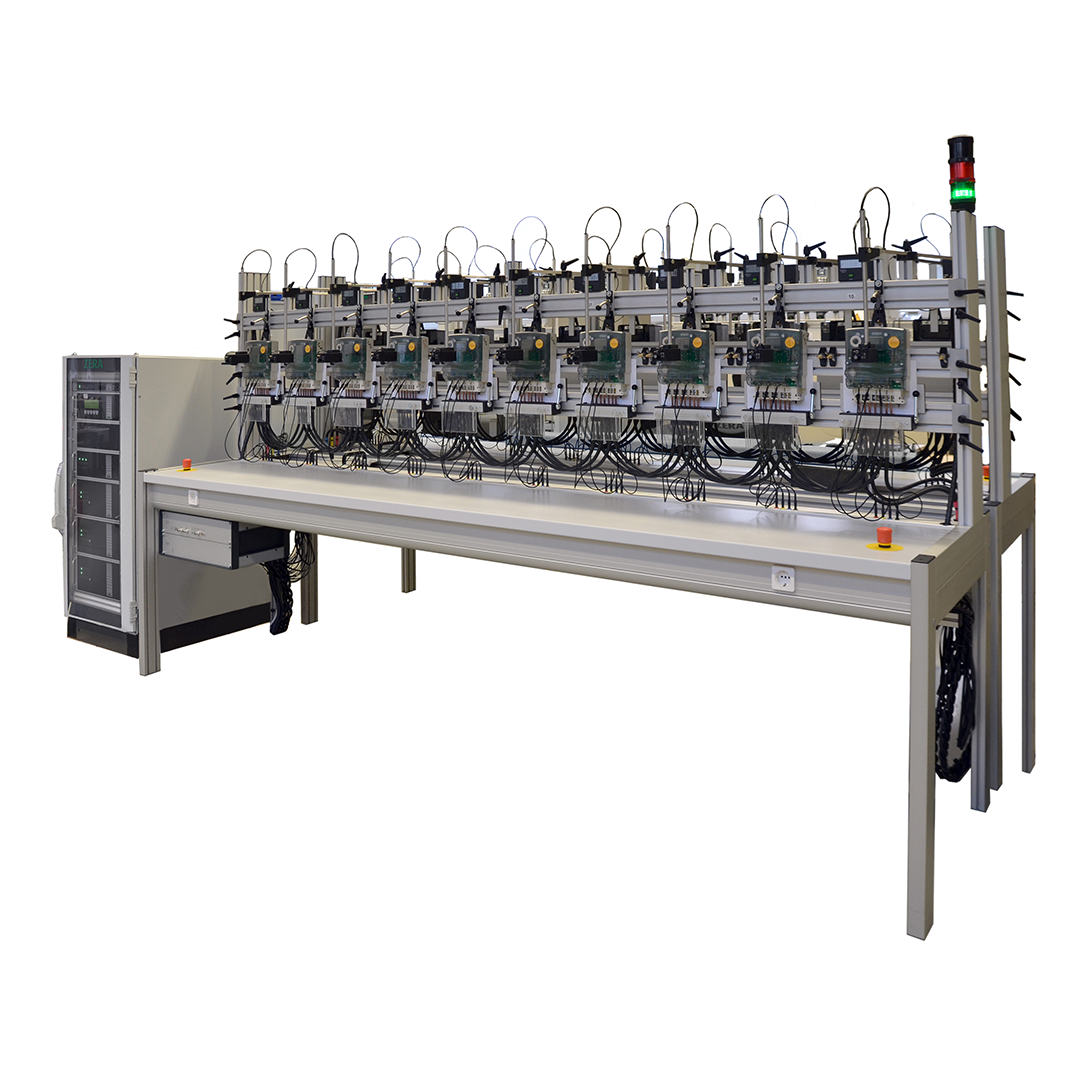

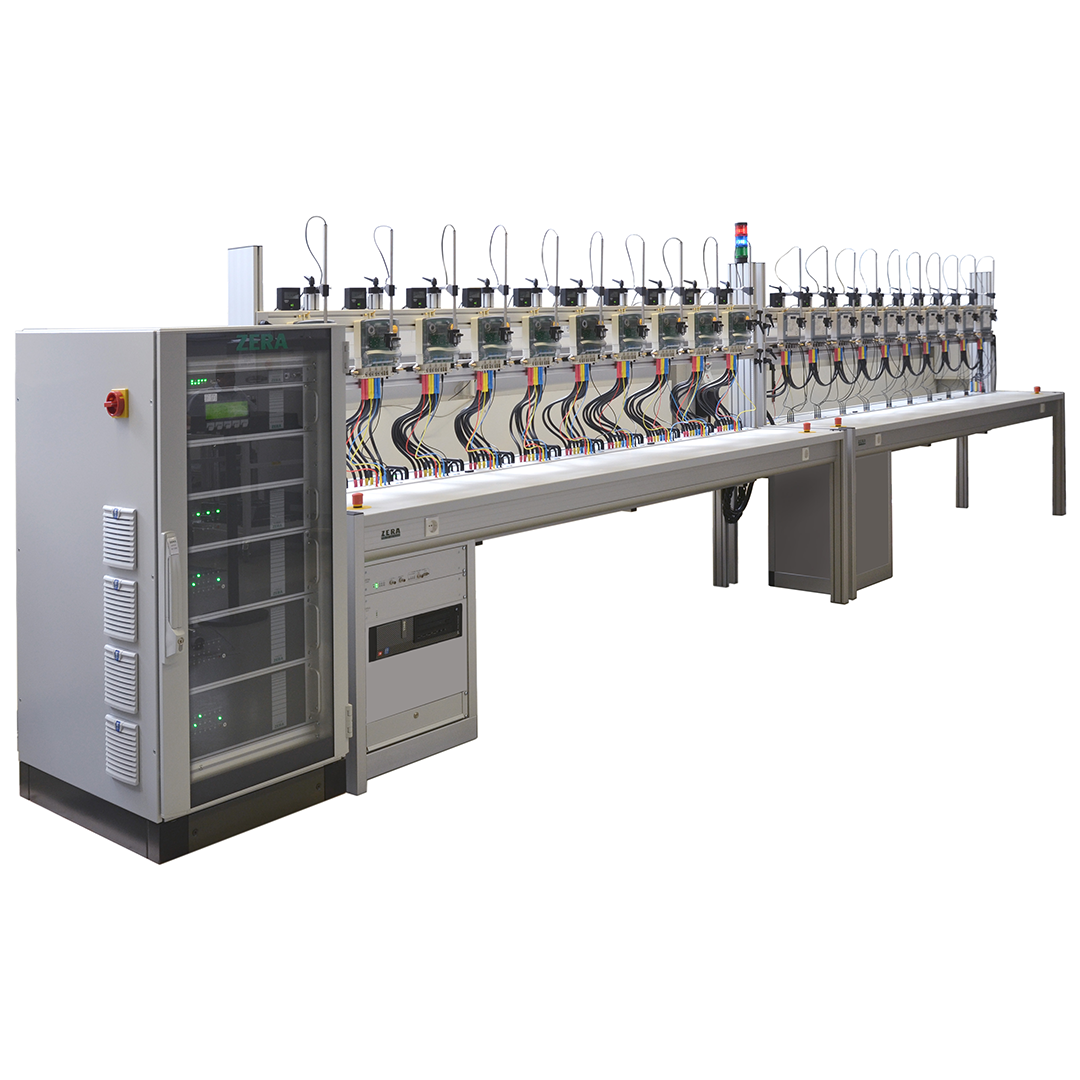

Key Features
- phases 3
- Accuracy class 0.02
- Output power U 3x 500 VA
- Voltage generation max. 320V (AC) 320V (DC)
- Output power I 3x 2000 VA
- Power generation max. 160 A (AC)
- Test value generation for max. 20 measuring stations
- Fully electronic voltage and current generation, independent from mains.
Built-in reference standard meter connected directly to the test circuit. - PC-controlled system with real-time display of:
o Test voltage & current
o Meter errors - Individual error display at each test position.
Tests Capability
- Pre-warming.
- Accuracy testing of energy meters.
- Starting Current Test.
- Creep Test.
- Influence quantity test as per IEC 62053-11,21, 22,23,24, EN 50470-1:2006, EN 50470-3:2006 (which are mainly linked with accuracy test).
- Dial test/Register test.
- Influence of self-heating.
- Influence of heating test ” Additional calibrated thermometer is required from local market (provided by the customer) to perform this test”.
- Harmonics generations (Harmonics up to 2nd to 40th for voltage amplifier and up to 2nd to 40th for current amplifier)
- Sub-Harmonics and even/ odd Harmonics generation.
- Influence of supply voltage: “Voltage interruption /voltage dips / severe voltage variation” test.
- Absolute measurement or Testing of reference meter
- Immunity of earth fault.
- No load condition test.
- Meter constant test.
- Absolute measurement or testing reference meter up to class 0.05.

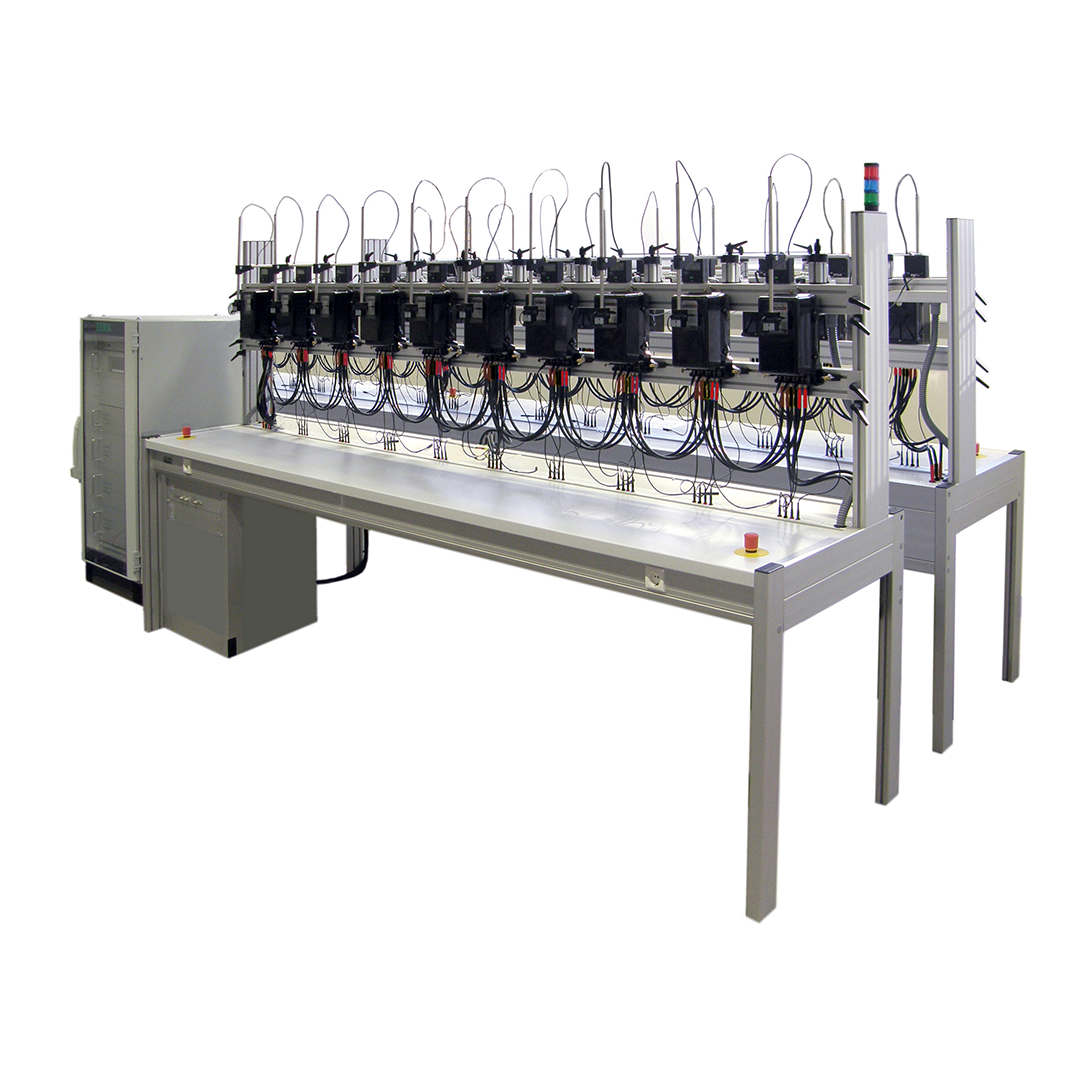

Components
- EPZ303, test counter
- FG301, frequency generator
- VI201, current amplifier
- VU221, voltage amplifier

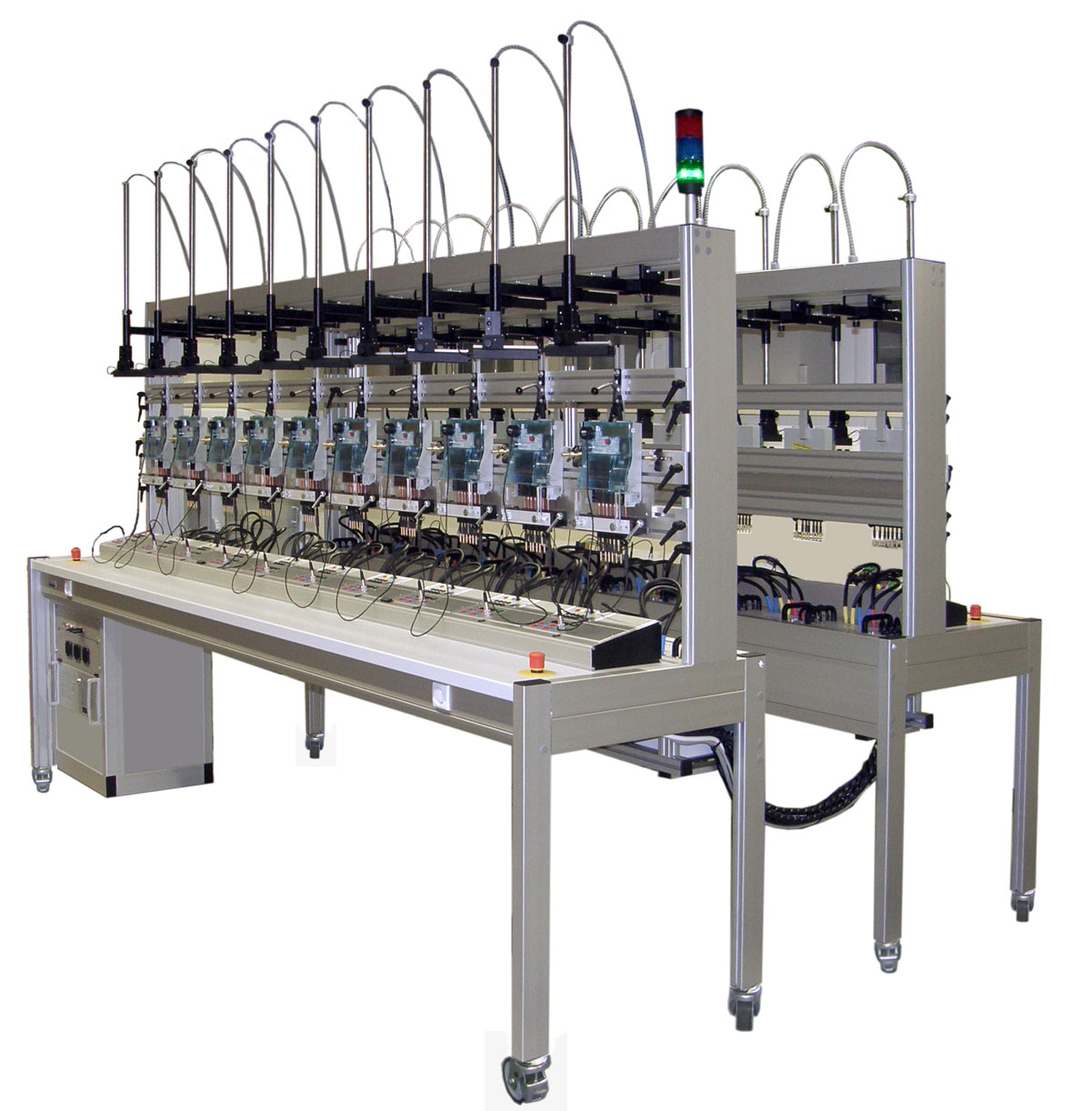

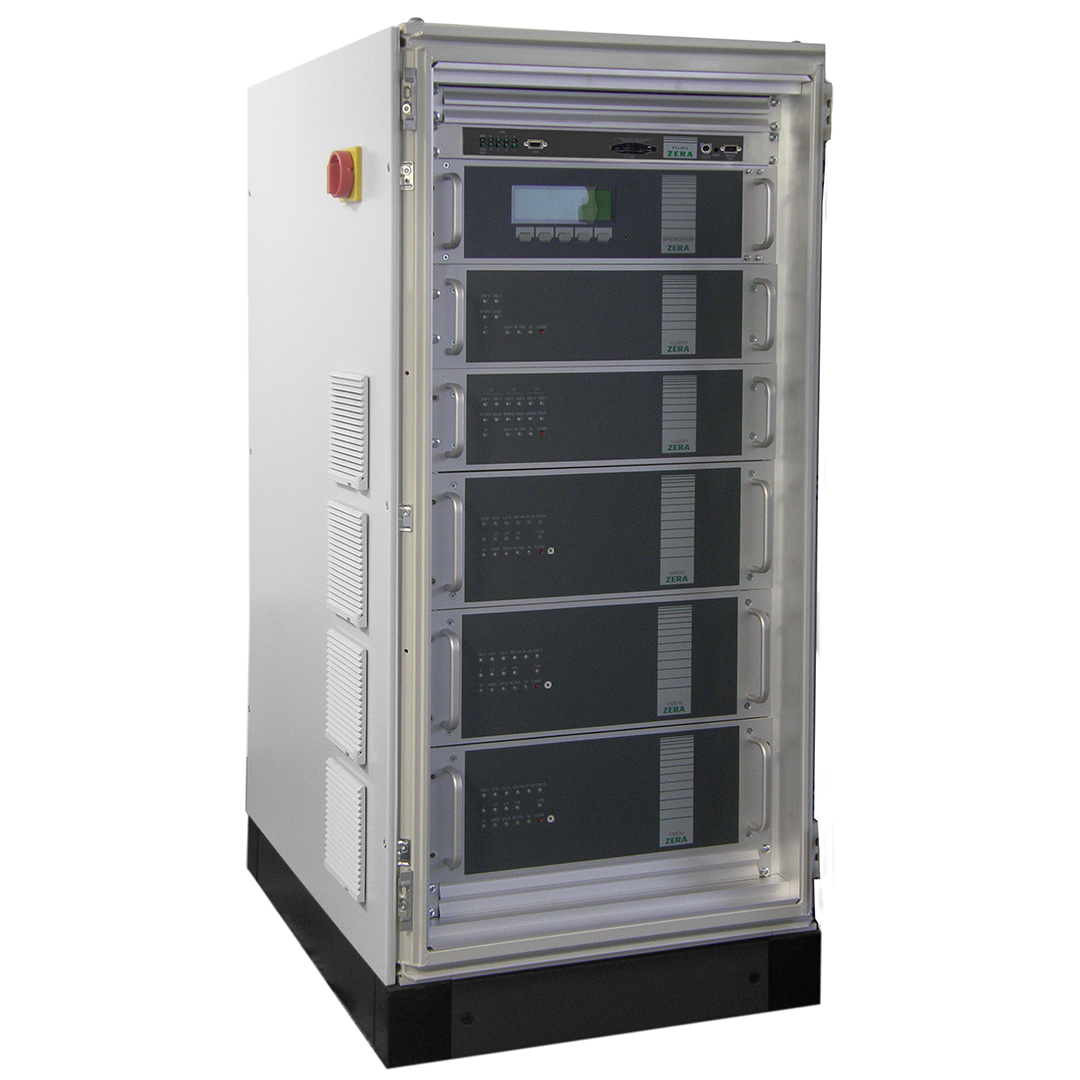

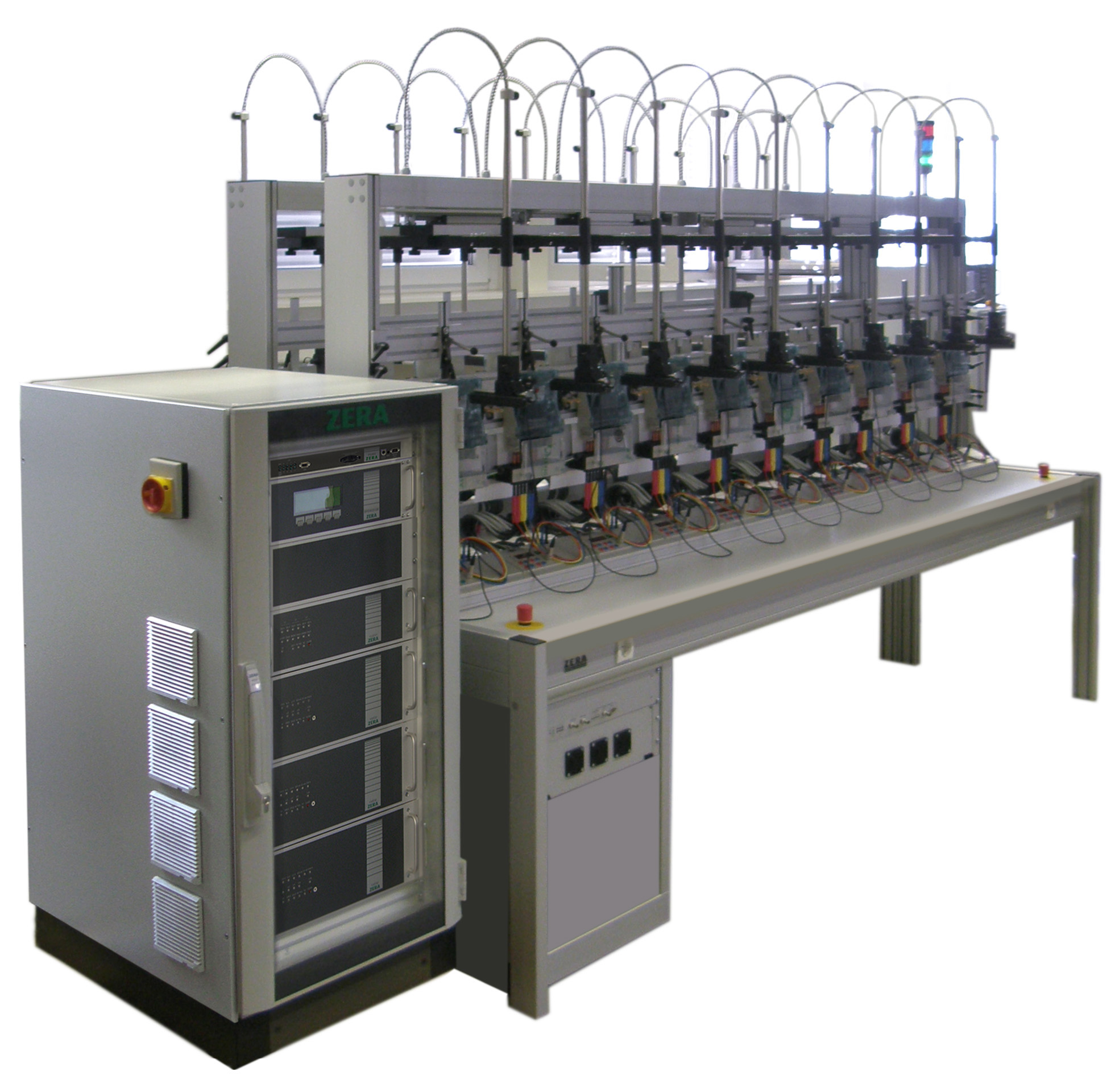

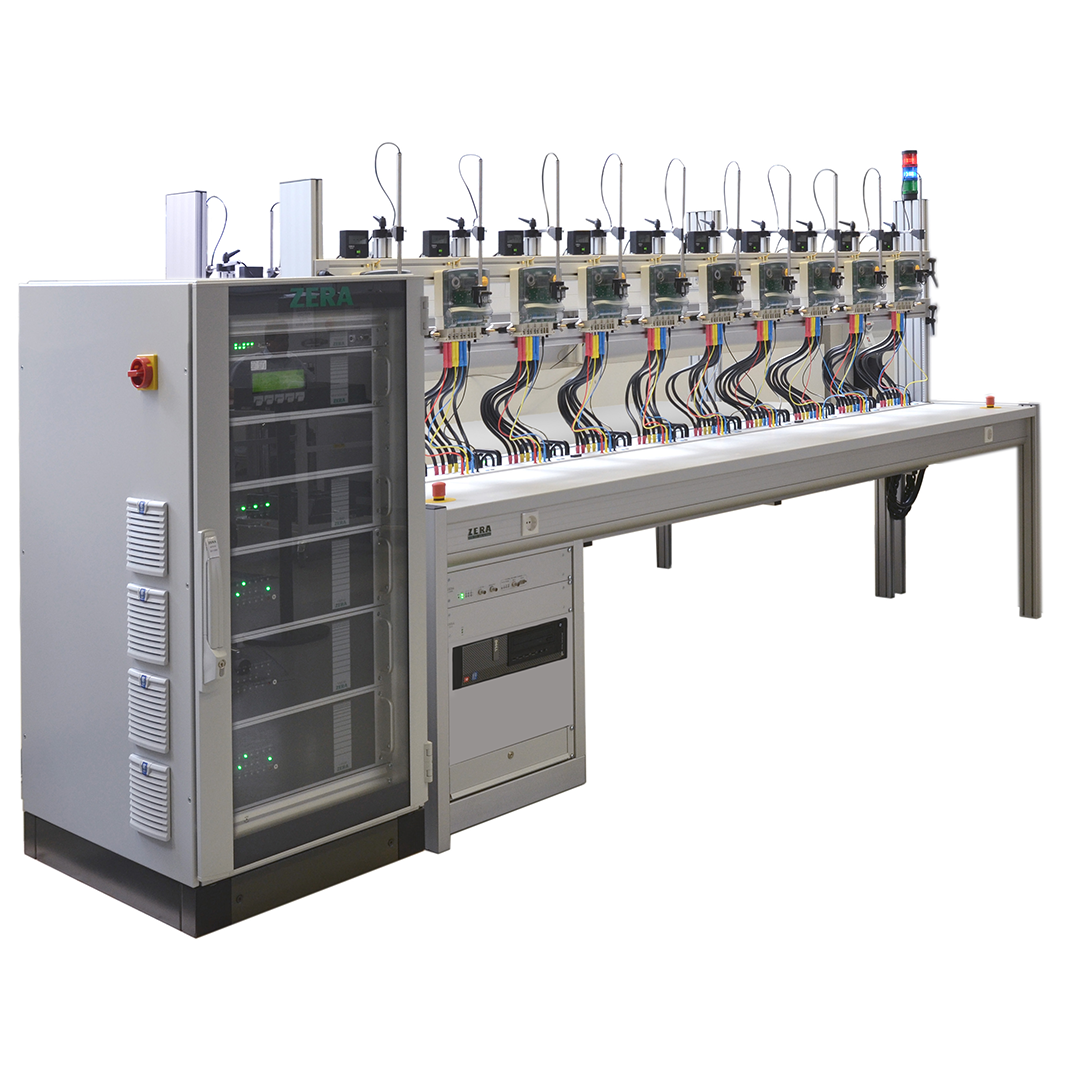

- switch cabinet
- Fan unit with control
- main switch
Power Supply
- Direct connection to unstabilized mains:
- 3 × 230/400 V ±10–15%, 50 Hz ±2%
- Adaptable to other voltages or 60 Hz systems upon request
Applications (Use Cases)

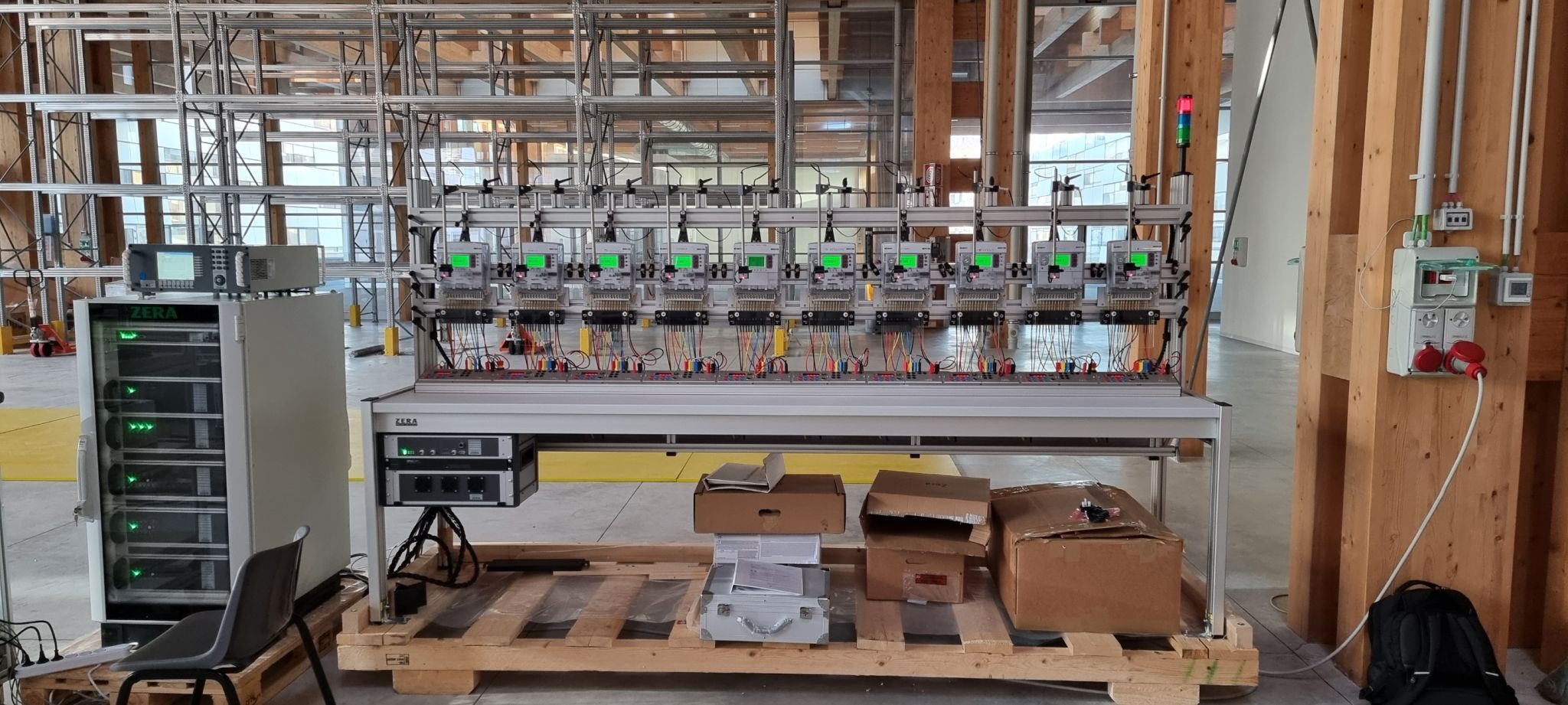

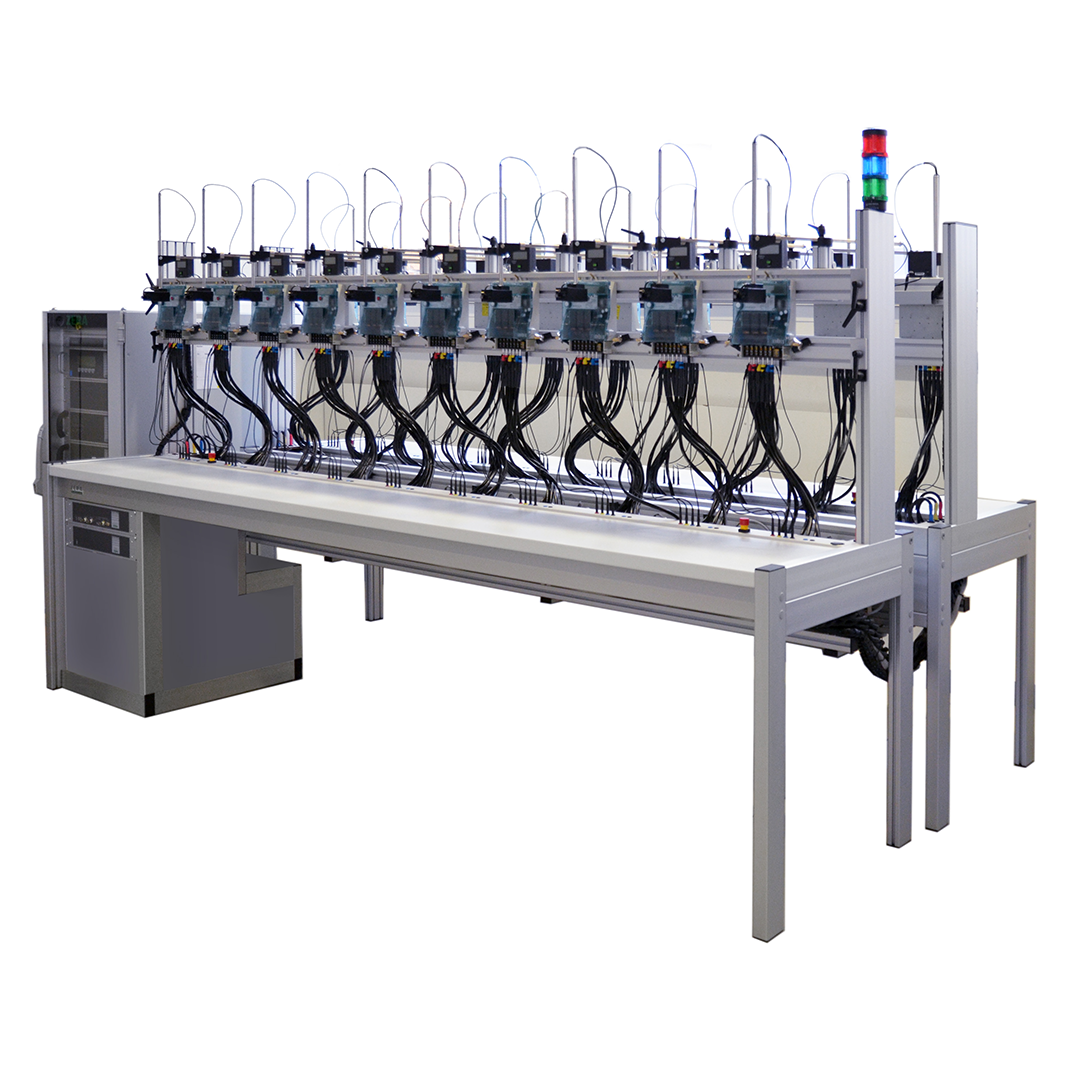

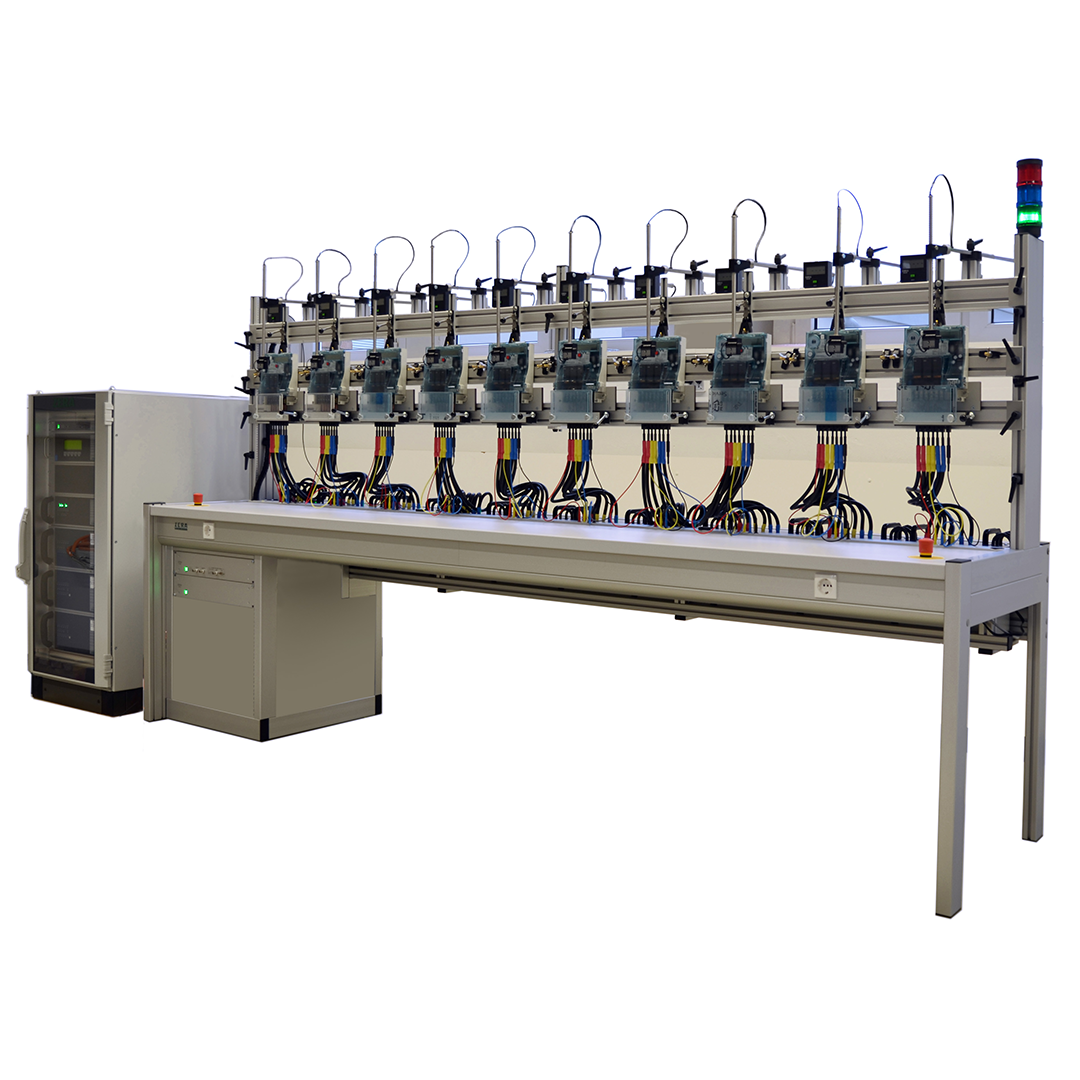

Use in stationary ZERA meter testing equipment
